Symptom of management network issue includes being unable to connect to CFP-MGTSRV, HQACCESS, switches and palos. We are able to access CFP-PRINT19 and CFP-FS19-01 as they are part of the user/access network.

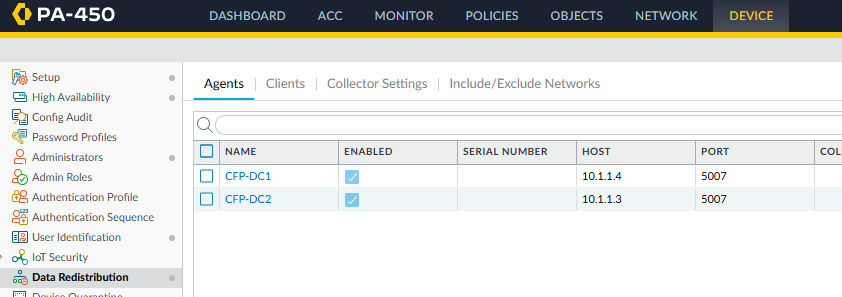

User-ID agent had stopped on DC1 for as-yet unknown reasons, and the agent on DC2 had an unrelated issue that was preventing the HQ firewalls from connecting. The lack of User-ID data on the firewall was preventing access to the management network in some cases.

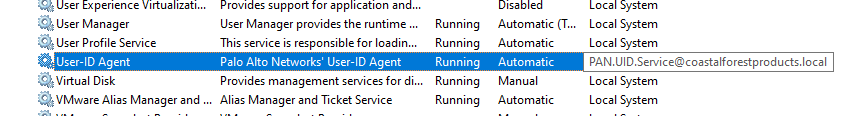

DC1 User-ID Agent service

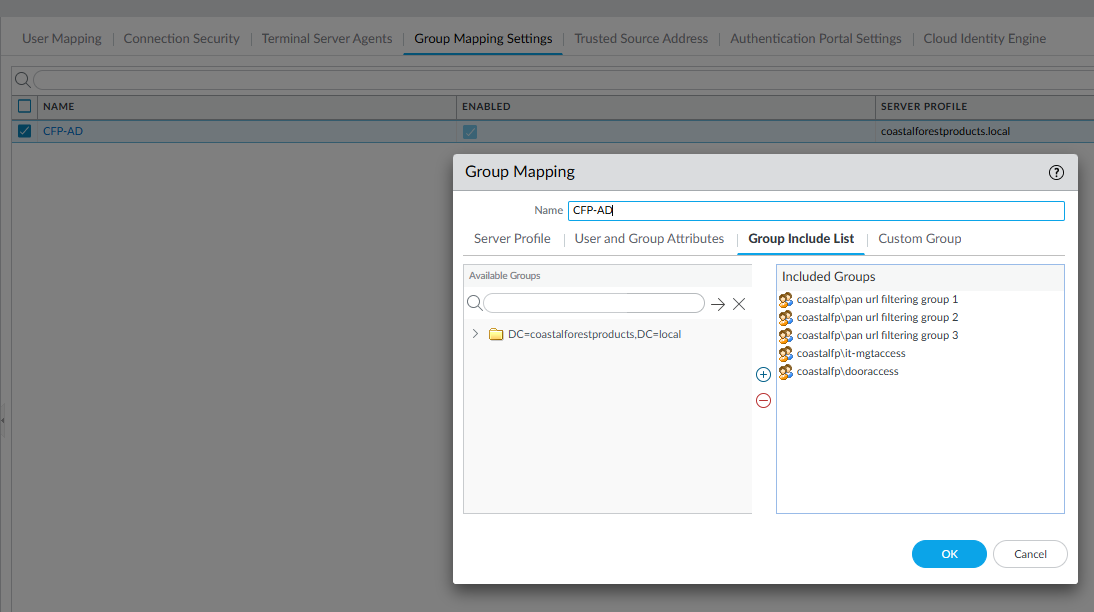

Group mapping Palo - Device > User Identification > Group Mapping Settings
